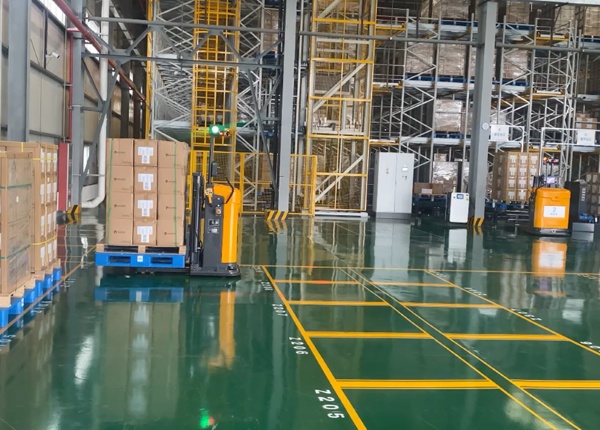

1. Does a Chinese AGV System Support VDA 5050 Out of the Box?

Reality in Most Deployments

Tier 1 — Fully Native VDA 5050 (Rare)

• Native VDA 5050 message broker implementation

• Direct interoperability with multi-vendor fleet managers

• Fully standardized state machine compliance

✔ Typically European vendors (e.g., Jungheinrich, KUKA ecosystems)

Tier 2 — Adapter-Based Compatibility (Most Common in China)

• Internal RCS protocol translated via VDA 5050 gateway layer

• External system integration supported

• Limited feature mapping compared to native implementation

✔ Most Chinese AGV suppliers fall into this category

Tier 3 — Proprietary System Only

• No VDA 5050 support

• REST / TCP / proprietary API only

• Requires custom middleware for integration

Key Takeaway

“VDA 5050 supported” often means a translation layer exists, not full native compliance.

2. Can You Use a European Master Control System (MCS)?

Yes — Under Specific Conditions

Typical architecture:

European MCS (Fleet Manager)        ↓ VDA 5050MQTT Message Broker        ↓Chinese RCS Adapter Layer        ↓AGV Execution Controller

What Works Well

✔ Task dispatching
✔ Vehicle status monitoring
✔ Basic mission execution
✔ Fleet-level coordination

Common Limitations

❌ Vendor-specific safety logic not exposed
❌ Forklift attachment control (lift/tilt)
❌ Elevator / door integration logic
❌ Charging strategy control
❌ Advanced AI routing features

3. What VDA 5050 Features Are Typically Implemented?

Core Supported Functions

✔ Vehicle state reporting (idle / moving / error)
✔ Task assignment (order → action sequence)
✔ Position reporting (x, y, orientation)
✔ Basic mission lifecycle
✔ Limited speed control commands

Partially Implemented or Missing

⚠ Advanced traffic negotiation logic
⚠ Full node-based route planning
⚠ Standardized error taxonomy mapping
⚠ Priority intersection coordination logic

Forklift AGV Gap

Forklift AGVs require:

• Lift height control

• Fork tilt control

• Pallet detection logic

👉 These are not fully standardized in VDA 5050 and are typically vendor extensions.

4. How to Handle Different Map Coordinate Systems?

Core Challenge

Different systems may use:

• CAD-based coordinates

• Pixel-based maps

• SLAM local frames

• Warehouse metric coordinates

Solution: Coordinate Transformation Layer

WMS (CAD Layout)        ↓Calibration Points (anchors)        ↓RCS Coordinate System        ↓VDA 5050 Global Frame

Standard Calibration Method

✔ Define 2–4 reference anchor points
✔ Align origin (0,0)
✔ Apply rotation alignment (yaw correction)
✔ Perform unit conversion (pixels → meters)

Critical Risk

If not calibrated correctly:

AGV positional drift of 0.5–2 meters → navigation failure

5. Is VDA 5050 Compatibility Free?

In Most Chinese AGV Systems: No

VDA 5050 is typically provided as:

• Middleware module

• Protocol gateway

• Optional integration license

Typical Cost Structure

Cost Drivers

• Fleet size

• Real-time performance requirements

• Level of compliance (partial vs full)

• MQTT broker integration

• Bi-directional control support

6. Critical Questions to Ask Your Supplier

Do NOT ask:

❌ “Do you support VDA 5050?”

Instead ask:

✔ Is VDA 5050 native or adapter-based?
✔ Which MQTT broker version is used?
✔ What percentage of VDA 5050 objects are implemented?
✔ Is forklift lift control mapped into the standard schema?
✔ Can a third-party MCS connect without custom development?
✔ What is system latency under full fleet load?

7. Real-World Integration Risks

Even when VDA 5050 is “supported”, issues often occur in:

• Forklift-specific motion control (lift/tilt)

• Emergency stop synchronization delays

• Mixed fleet coordination (AMR + forklifts)

• Path conflict resolution mismatches

• Charging strategy inconsistencies

Industry Reality

Most enterprises ultimately run:

VDA 5050 for coordination layer

• Proprietary RCS for execution layer

Bottom Line

• “Out-of-the-box VDA 5050 support” in Chinese AGVs usually means adapter-based integration

• European MCS systems can integrate successfully, but require mapping + limitation handling

• Coordinate system alignment is one of the most critical hidden risks

• VDA 5050 support is often a paid integration module, not a default feature
